Our Fleet

Rig ID: SR36

Model Eijkelkamp LRS XL

Mounting Track mounted

  • Capability
  • Solid Augers 60 metres
  • SPT and Push Tubes Yes
  • Rotary Mud 300 metres
  • Rock Coring 600 metres
  • Sonic Drilling Techniques 250m
  • Rod Handling Systems Yes
  • Angle Hole 0-45 degrees
  • Specification
  • Length Travelling 11,700mm
  • Width 2,450mm
  • Height Mast Raised 12,100mm
  • Height Mast Travelling 2,950mm
  • Weight Tare 22,000kgs
  • Noise Level Working 83db
  • Levelling System 4 Hydraulic Legs

Rig ID: SR20

Model Eijkelkamp MRS XL

Mounting Track mounted

  • Capability
  • Solid Augers 60 metres
  • SPT and Push Tubes Yes
  • Rotary Mud 300 metres
  • Rock Coring 600 metres
  • Sonic Drilling Techniques 210m
  • Rod Handling Systems Yes
  • Angle Hole 0-45 degrees
  • Specification
  • Length Travelling 11,700mm
  • Width 2,450mm
  • Height Mast Raised 12,100mm
  • Height Mast Travelling 2,950mm
  • Weight Tare 22,000kgs
  • Noise Level Working 83db
  • Levelling System 4 Hydraulic Legs

Rig ID: SR32

Model Eijkelkamp CRS XL

Mounting Track mounted

  • Capability
  • Solid Augers 40 metres
  • SPT and Push Tubes Yes
  • Rotary Mud 150 metres
  • Rock Coring 450m (HQ) 200m (PQ)
  • Sonic Drilling Techniques 150m
  • Rod Handling Systems Yes
  • Angle Hole 0-45 degrees
  • Specification
  • Length Travelling 11,845mm
  • Width 2,450mm
  • Height Mast Raised 11,150mm
  • Height Mast Travelling 3,250mm
  • Weight Tare 16,200kgs
  • Noise Level Working 83db
  • Levelling System 4 Hydraulic Legs

Rig ID: SR26

Model Eijkelkamp SRS ML

Mounting Track mounted

  • Capability
  • Solid Augers 40 metres
  • SPT and Push Tubes Yes
  • Rotary Mud 100 metres
  • Rock Coring 200metres
  • Sonic Drilling Techniques 100m
  • Rod Handling Systems Yes
  • Angle Hole 0-45 degrees
  • Specification
  • Length Travelling 8,700mm
  • Width 2,000mm
  • Height Mast Raised 9,200mm
  • Height Mast Travelling 2,600mm
  • Weight Tare 9,000kgs
  • Noise Level Working 85db
  • Levelling System 4 Hydraulic Legs

Rig ID: SR22

Model Eijkelkamp SRS ML

Mounting Track mounted

  • Capability
  • Solid Augers 40 metres
  • SPT and Push Tubes Yes
  • Rotary Mud 100 metres
  • Rock Coring 200metres
  • Sonic Drilling Techniques 100m
  • Rod Handling Systems Yes
  • Angle Hole 0-45 degrees
  • Specification
  • Length Travelling 8,700mm
  • Width 2,000mm
  • Height Mast Raised 9,200mm
  • Height Mast Travelling 2,600mm
  • Weight Tare 9,000kgs
  • Noise Level Working 85db
  • Levelling System 4 Hydraulic Legs

Rig ID: SR18

Model Eijkelkamp SRS PL

Mounting Track mounted compact

  • Capability
  • Solid Augers 30 metres
  • SPT and Push Tubes Yes
  • Rotary Mud 50 metres
  • Sonic Drilling Techniques 55m
  • Rod Handling Systems Yes
  • Angle Hole 0-45 degrees
  • Specification
  • Length Travelling 4,350mm
  • Width 1,500mm
  • Height Mast Raised 4,350mm
  • Height Mast Travelling 2,200mm
  • Weight Tare 4,500kgs
  • Noise Level Working 83db
  • Levelling System 4 Hydraulic Legs

Traditional drilling rigs

Rig ID: DR34

Model Hanjin D&B 8-D

Mounting Track mounted

  • Capability
  • Solid Augers 30 metres
  • Rotary Mud 150mm x 200 metres
  • Rock Coring 125mm x 200 metres
  • Diamond Drilling Yes
  • NQ2 450 metres
  • HQ3 250 metres
  • PQ3 100 metres
  • SPT Sampling Yes
  • U Tube Yes
  • Packer Testing Yes
  • Specification
  • Length Travelling 6,500mm
  • Width 2,000mm
  • Height Travelling 2,050mm
  • Height Operational 7,200mm
  • Weight 4,500kgs
  • Noise 86db
  • Levelling System 4 Hydraulic Jacks

Cone penetration testing

Rig ID: CPT30

Model CPT 100 Box Crawler

Mounting Track mounted

  • Capability
  • Tailing Dams Yes
  • Low Pressure Footprint
  • CPTu Yes
  • SCPTu P-S Wave Yes
  • Medusa DMT Yes
  • Dissipation Testing Yes
  • Thin Wall Tube Sampling 66mm / 75mm
  • Disturbed Sampling Yes
  • Digital Cones Yes
  • Video CPT Yes
  • Specification
  • Ground Pressure 0.35cm2 5Psi
  • Stroke 1,250mm
  • Push Force 200Kn
  • Retract Force 320Kn
  • Length 4,350mm
  • Width 2,400mm
  • Height with Canopy up 3,100mm
  • Weight 15,500kg
  • Noise inside Cab 67db
  • Airconditioned Cab Yes
  • Remote Control Tramming Yes
  • Levelling System Self-levelling 4 Hydraulic Jacks

Rig ID: CPT28

Model CPT 200 Compact Crawler

Mounting Track mounted

  • Capability
  • Tight Access Yes
  • CPTu Yes
  • SCPTu P-S Wave Yes
  • Medusa DMT Yes
  • Dissipation Testing Yes
  • Thin Wall Tube Sampling 66mm / 75mm
  • Disturbed Sampling Yes
  • Digital Cones Yes
  • Video CPT Yes
  • Detachable Pusher Frame 1,800mm high
  • Specification
  • Ground Pressure 0.45cm2 6.5Psi
  • Stroke 1,050mm
  • Push Force 200Kn
  • Retract Force 320Kn
  • Length 2,500mm
  • Width 850mm
  • Height Mast Raised 2,750mm
  • Height Mast Travelling 2,030mm
  • Remote Control Tramming Yes
  • Noise Level Working 92db
  • Levelling System 3 Hydraulic Jacks

Support equipment

Asset ID: EX02

Model Kubota Excavator KX033-4

Mounting Track mounted

Capability Test pitting, pavement dipping, dig depth 3.5m

Asset ID: EX01

Model Kubota Excavator 5.54-U55

Mounting Track mounted

Capability Test pitting, pavement dipping, dig depth 3.5m

Asset ID: TH1, TH2, TH3 & TH4

Model 795 Wacker Neuson TH412 Telehandlers x 4

Asset ID: ATV1

Model Argo Aurora All Terrain Vehicle

Asset ID: CP02 & CP03

Model Atlas Copco Air Compressors x 2 CP02 100/180 CFM
CP03 200/600 CFM

Asset ID: MP1

Model Mud Puppy MP85-25CT processes and cleans up to 945 litres of mud per minute.

Asset ID: GM01

Model ChemGrout Rugged High Pressure Mixer Pump with 170 litre mixing tank and single-acting 3” piston grout pump.

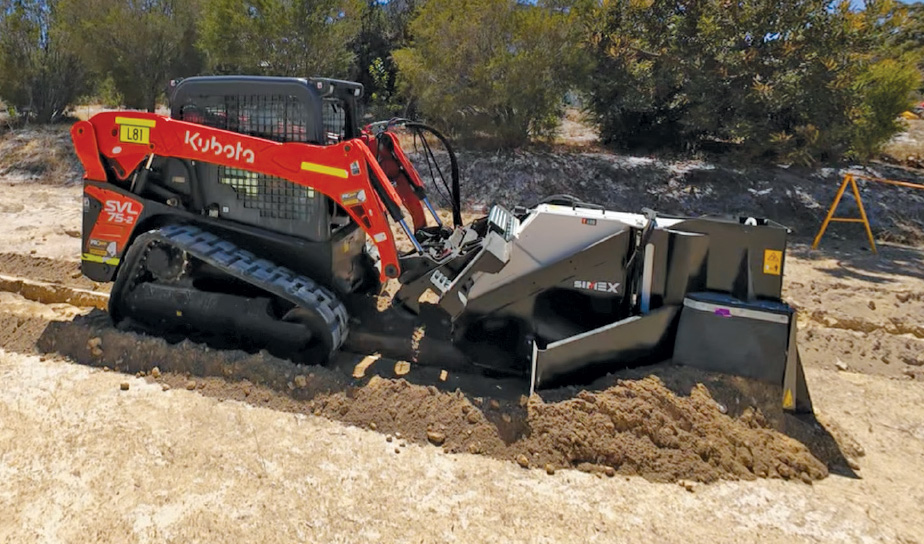

Asset ID: SS2 & SS3

Model Kubota SLV-3 Skid Steers x 2 with bucket, auger, tynes and trencher.

Asset ID: MT01

Model Morooka MST1500VD Track Machine

Length 6,200mm

Width 2,550mm

Height 2,920mm

Weight 8.2t

Carrying Capacity 7.1t

Ground Pressure 24.8 Kpa
